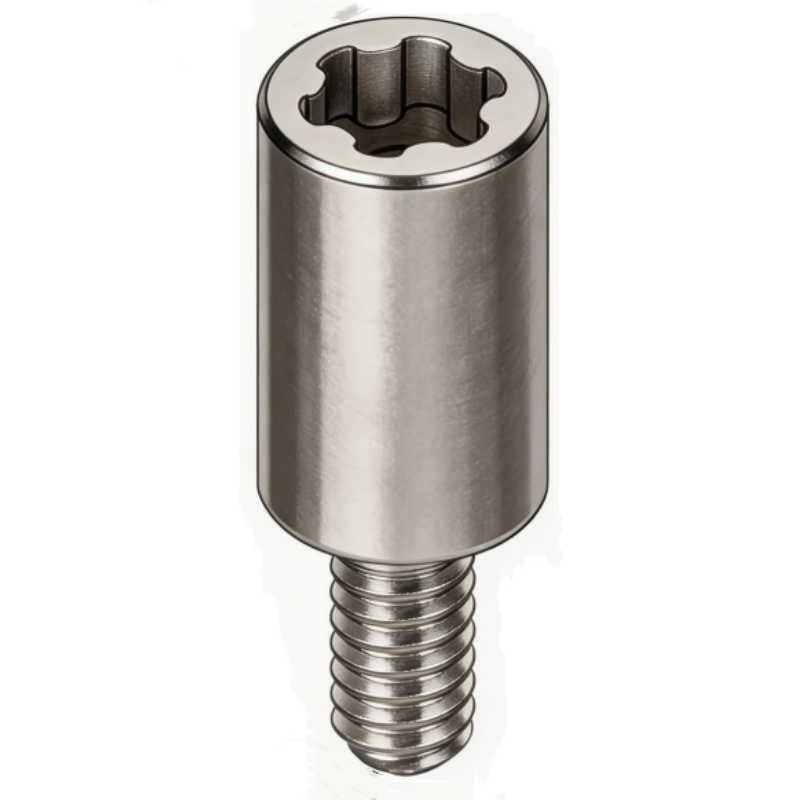

1.2 mm PCB Application Inside/Outside Threaded Super Screw
1.2MmPCBapplication Inside/Outside Threaded Super Screw — carbon steel, for micro precision, PCB assembly.
| Product Name | 1.2 mm PCB application thread class |
|---|---|
| Series | Precision Screws · PCB Application Series |
| Material | High-hardness alloy |
| Structure | Combined external and internal thread (inside/outside thread) |
| Key Process | Precision internal/external thread forming · fine thread rolling |
| Assembly Method | Suits automated assembly |
Overview
Micro precision screws are fasteners below roughly M2, cold-headed to tolerances where head geometry and recess depth are measured in fractions of a millimetre. At this scale the screw behaves as a controlled spring against a plastic or thin-metal boss, so preload must be specified as a band rather than a maximum. This listing: material High-hardness alloy.
What sets this listing apart: Key Process Precision internal/external thread; Product Name 1.2 mm PCB application thread class.
Advantages
Plating thickness is held inside the recess tolerance so the driver still fits after coating.
Cold heading produces a continuous grain flow through the head-to-shank transition, which resists head shear far better than a machined micro screw.
Tight recess-depth control lets automated drivers engage without cam-out at high cycle rates.
Applications
Consumer electronics housings, wearable devices, camera modules, small appliance enclosures, and robot actuator assemblies.
Match the screw to the boss design: one size above the boss allowance cracks the plastic before torque is reached. Check the galvanic couple when the screw contacts a dissimilar metal.
Product information is supplied by Toprecision. Custom parts can be produced to drawing — contact us for samples or a quotation.
Specifications across this series
2 parts in this series
| Part | Material | Product Name | Series | Structure |
|---|---|---|---|---|
| 1.4MmPCBapplication Inside/Outside Threaded Super Screw · Quality alloy steel / 1.4 mm PCB application thread class / Precision Screws · PCB Application Series | Quality alloy steel | 1.4 mm PCB application thread class | Precision Screws · PCB Application Series | Combined external and internal thread (inside/outside thread) |
| 1.2MmPCBapplication Inside/Outside Threaded Super Screw · High-hardness alloy / 1.2 mm PCB application thread class / Precision Screws · PCB Application Series | High-hardness alloy | 1.2 mm PCB application thread class | Precision Screws · PCB Application Series | Combined external and internal thread (inside/outside thread) |
Values are taken from each part’s own attribute set. Changing length, material or finish changes pull-out strength and installation torque, so compare the row that matches your drawing.
Selection and test data: engagement length, standards, salt-spray hours
FAQ
What are the key dimensions of this part?
Product Name 1.2 mm PCB application thread class, Series Precision Screws · PCB Application, Material High-hardness alloy, Structure Combined external and internal thread.
What material and finish is it supplied in?
High-hardness alloy.
What should I verify before ordering or installing it?
Match the screw to the boss design: one size above the boss allowance cracks the plastic before torque is reached. Check the galvanic couple when the screw contacts a dissimilar metal.
